Vertical packaging machine BASIS-8

BASIS-8 — is a modern and reliable packaging machine of Company Basis. This model is suitable for main bag types: pillow, stand-up bag. Any dosers can be supplied with this machine. Our customer can choose different options according to their requirements.

Main advantages of BASIS-8:

  • 5 bag types.
  • Wide range of bag size.
  • Possibility of double machines working (for high speed).
  • Can be modified to BASIS-11 for stabilo bag forming.
  • Wide range of additional options for bag modernization and packing of difficult product.
  • Touch screen control.

Bag types:

Three-weld pillow bag
Application:

Snacks, grits, tea, coffee, dried fruits, seeds, frozen products, specimens, nuts, confectionaries.

Advantages:

Low cost, widely spread, easy for use, good for horizontal show-cases and fridges.

With angles (Gasset)
Application:

Snacks, grits, tea, coffee, dried fruits, seeds, frozen products, specimens, nuts, confectionaries.

Advantages:

Not easy formation of a bag, it is good for stacking into a box, good choice for grits, flakes, tea and snacks.

With angles, lateral weld
Application:

Snacks, grits, tea, coffee, dried fruits, seeds, frozen products, specimens, nuts, confectionaries.

Advantages:

No visual weld, not easy bag form, it is good for stacking into a box (a gag doesn’t lose its form in a box due to its gussets), perfect choice for grits, flakes, tea and snacks.

Stand-up pouch
Application:

Snacks, grits, tea, coffee, dried fruits, seeds, frozen products, specimens, nuts, confectionaries.

Advantages:

Filled bag keeps the form well, it is stable on a shelf and on a show-case. This bag widely used for products sold in retails.

Stand-up pouch, lateral weld
Application:

Snacks, grits, tea, coffee, dried fruits, seeds, frozen products, specimens, nuts, confectionaries.

Advantages:

Filled bag keeps the form well, it is stable on a shelf and on a show-case. This bag widely used for products sold in retails.

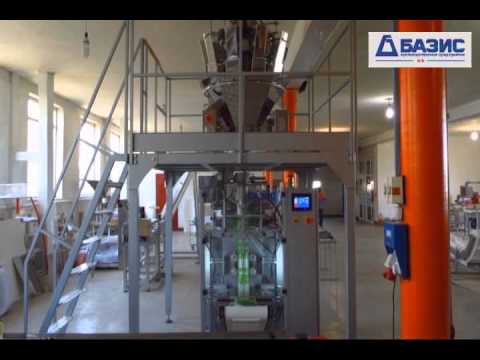

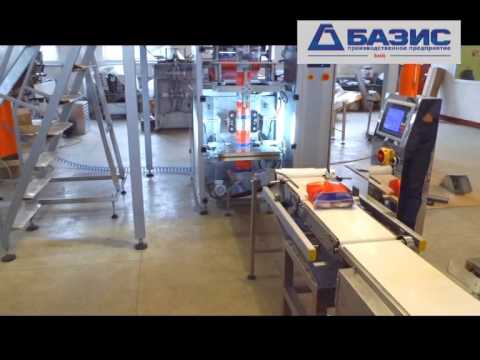

Video of BASIS-8 work

Main technical specification:
Characteristics name Unit Value
Kinematical capacity (Max. speed) Pcs/min 80
Max. bag length mm 435
Film width mm 130-510
Max. bag width mm 250
Max. film roll diameter mm 400
Film thickness micrometer 35-60
Power supply V/Hz 380/50 3P+N+P
Heating elements power supply V/Hz 24/50
Heating time of heating elements min Max 20 min
Power consumption kW 3
Operating temperature of heating elements °С Max 200
Air pressure Mpa 0,6
Air consumption (0.6 Mpa) l/min 250
Machine dimensions (W х H x L) mm 1260х1660х1920
Weight kg 750

Options:

  • Ink coder
  • Applicator «SealStrip» for bag resealing
  • Euroslot
  • Air dump device
  • Dust aspiration
  • Film perforation
  • Tear notch
  • Static eliminator
  • Date on sealing seam
  • Inert gas injection system
  • Bag forming device by photo mark
  • Feeding device to bag forming tube: chute, vibrating funnel, vibrating tray
  • Bottom seam tuck in
  • Side fold forming device
  • Bottom seam cooling

Option of bag resealing:

bag reclosing system Peel&SealPeel&Seal – is the system of bag resealing patented by SealStrip Company.

Consumers open the package by using the packages current method of cutting, tearing away or pinching and pulling apart the end seal.

Consumers reclose the package by lifting the non-adhesive linear edge of the tape, rolling down the bag and using the tape to seal down the rolled bag.

Peel&Seal advantage over other bag resealing systems is it enables air enter to the bag. As a result, it’s more suits for storing cereals, snacks, seeds, candies, dried fruits, frozen vegetables, meat dumplings and other products.
